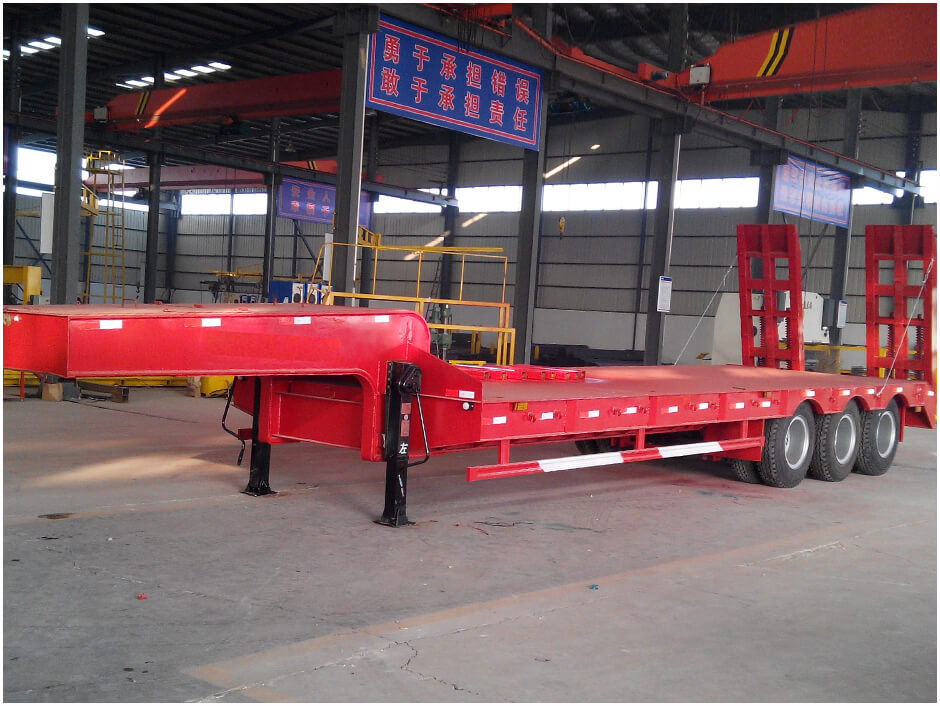

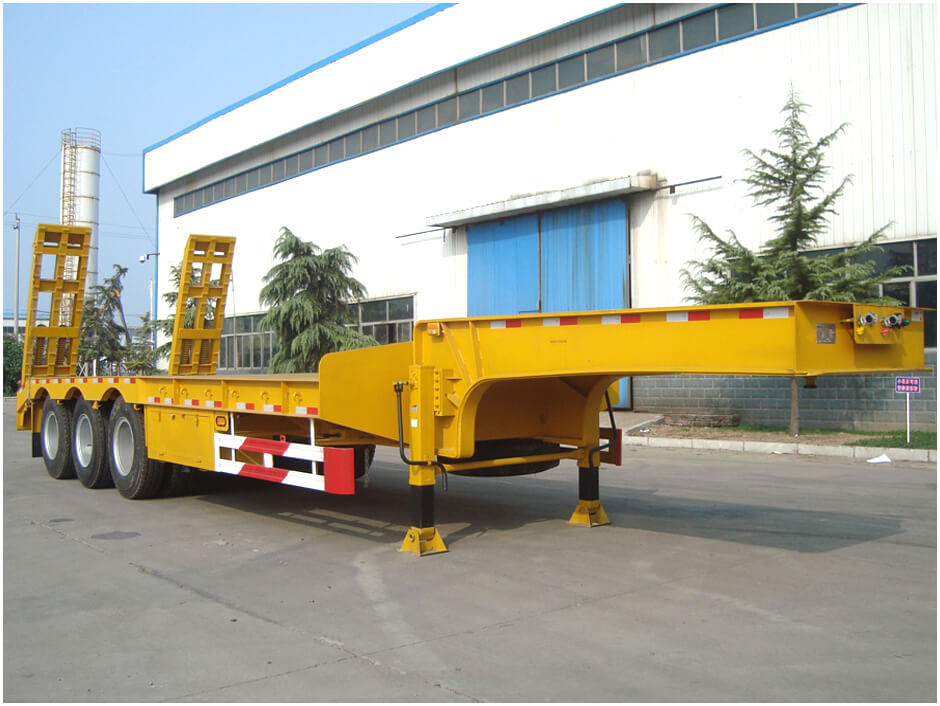

Low Bed Semi Trailer-Products-China National Heavy Duty Truck Group Co., Ltd.

<

>

Loading Capacity:40 Tons /50 Tons / 60 Tons

Platform Size:9000*3000 mm

Axle Number:3 Axles / 4 Axles

Kingpin Size:2.0 Inch / 3.5 Inch

Specifications Details & Features

Model	Lowbed Semi Trailer

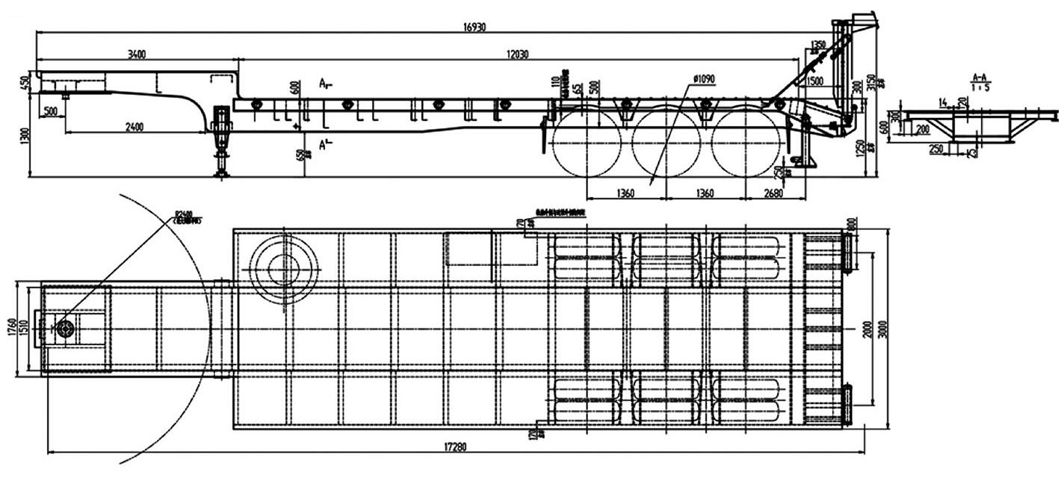

Dimension	16930 x 3100 x 3100mm
Curb Weight	10Tons
Loading Capacity	50 Tons
Platform Size	12000*3000 mm
Steel Material	Q345 Mn for steel plate, Q235 for other parts
Kingpin	JOST 2.0 / 3.5 Inch
Landing Gear	JOST 28 Tons
Main Beam	Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm
Side Beam	18mm steel channel
Suspension	America type mechanical suspension
Spring Leaf	90mm x 13mm x 10 layers
Axles	FUWA Brand, 13Tons or 16Tons
Tires	11.00R20 or 11R22.5
Brake Chamber	T30/30 + T30 spring brake chamber, one piece of 45L air tanks
Electrical	24V
Tool Box	1000 x 500 x 500 mm
